Batten Covers & Bases

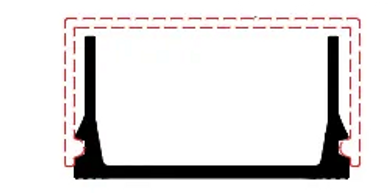

25mm Wide x 25mm High Batten cover.

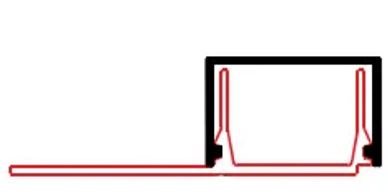

Clips onto 25mm Spacer Base (Red Diagram) or 25mm Stand Alone Base.

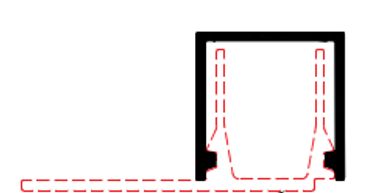

40mm Wide x 25 High Batten cover.

Clips onto 30mm or 40mm Spacer Base (Red Diagram) or 40mm Stand Alone Base.

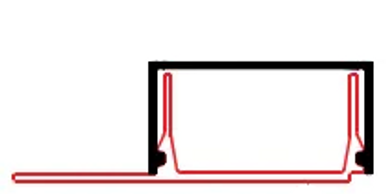

50mm Wide x 25 High Batten cover.

Clips onto 25mm or 50mm Spacer Base (Red Diagram) or 50mm Stand Alone Base.

Our stand-alone bases are designed without the flat aluminium platform typically used to create uniform gaps between battens. This allows for open spacing, making them ideal for applications where airflow, visibility, or light penetration is essential

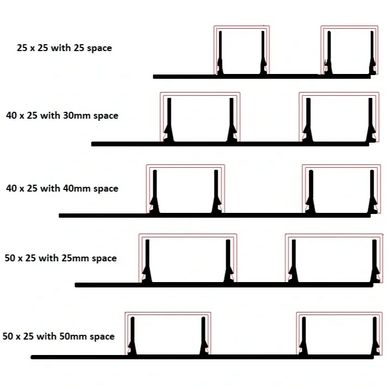

Our spacer base is a precision-engineered solution designed to streamline batten installation with exact spacing and alignment. Each base features a flat aluminium platform positioned beside the mounting point, allowing battens to clip on securely and maintain consistent millimetre spacing—customised to suit the batten profile.

This system eliminates the need for sheeting over external substrates prior to cladding. The integrated aluminium platforms ensure full coverage of the surface with no gaps between battens, saving time, labour, and materials while delivering a clean, architectural finish

COMING SOON!

We’re expanding our batten cover range to include 40×40 and 50×50 profiles—designed to deliver bold, architectural lines with the same precision-fit and ease of installation you expect from our system.
